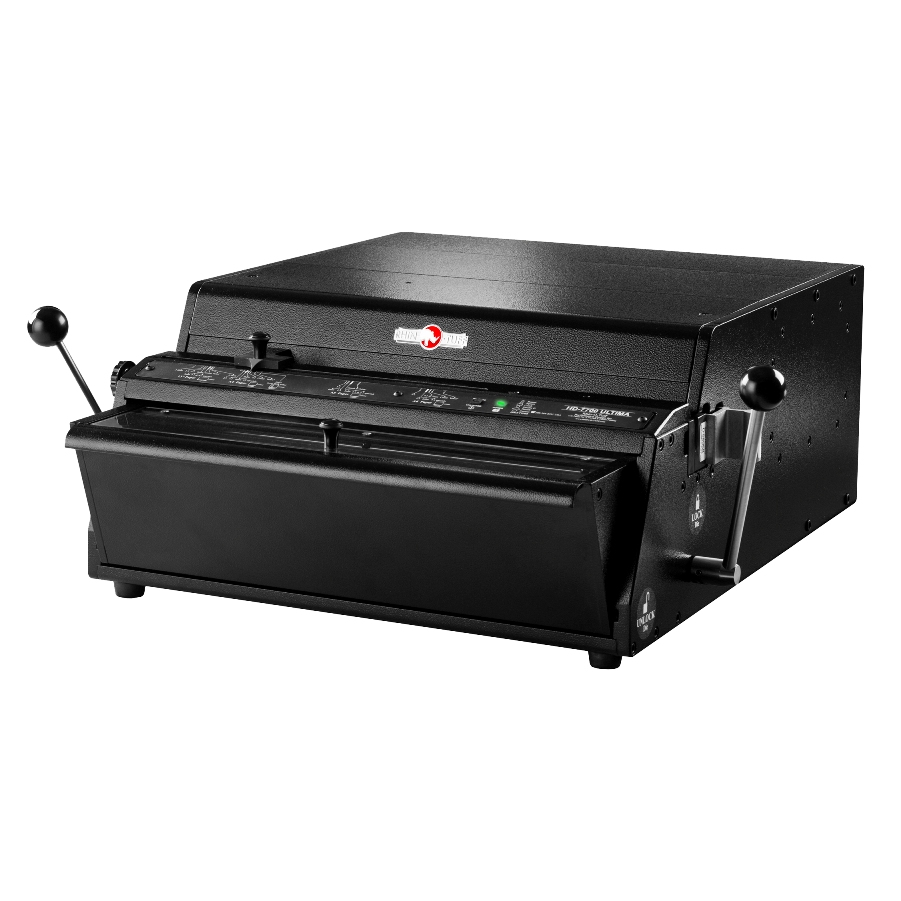

Onyx 7700 Ultima 14" Wire Coil Comb Electric Punch


    This combination does not exist.


    Onyx 7700 Ultima

    The HD7700 Ultima is a high performance, heavy-duty, table top punch designed for high volume commercial and corporate use. It features quick change dies that can be changed out in 30 seconds allowing the operator to easily change from job to job with minimal downtime. The HD7700 binding punch has more than 20 interchangeable die options to punch hole patterns for coil binding, comb binding, double-loop wire binding, and 3-hole punching. This patented Quick Die Change System is combined with cutting edge features like the 14" open-ended, extra-volume dies, (capable of punching up to 55 sheets of 20lb paper), an extended capacity waste tray, diagnostic display lights indicating machine condition, and manual reverse to handle overload jams. Along with the smooth, quiet, power-on-demand operation, the HD7700 Ultima Electric Punch has standard foot pedal and palm switch operation, and a paper adjustment knob for fine adjustments, even on custom paper sizes. This all-metal construction table-top modular punch will handle any size project, large or small. It comes with one standard die of your choice - and can be easily turned into a binding system by adding one of the modular finishing units. Call today to see about ordering your HD7700 Ultima binding punch.

    • Heavy-duty electric punch
    • Punch up to 55 sheets 20lbs bond paper
    • 14" (356mm) punching width
    • Open on both ends for punching longer sheets
    • Speed up to 25 cycles per minute
    • All metal construction
    • Auto reverse and overload detection functions
    • Patented Quick Die Change System with interchangeable dies
    • Accepts dies for plastic coil, plastic comb, wire loop, and three hole punch binding
    • Includes one standard sized die
    • Foot pedal and palm switch operation, versa switch optional
    • 9" x 23" x 23" size (229 x 585 x 585mm)
    • 74 lbs weight (34kg)
    • 115 VAC, 4 A, 60 Hz
    • 3 year warranty on parts
    • Made in USA
