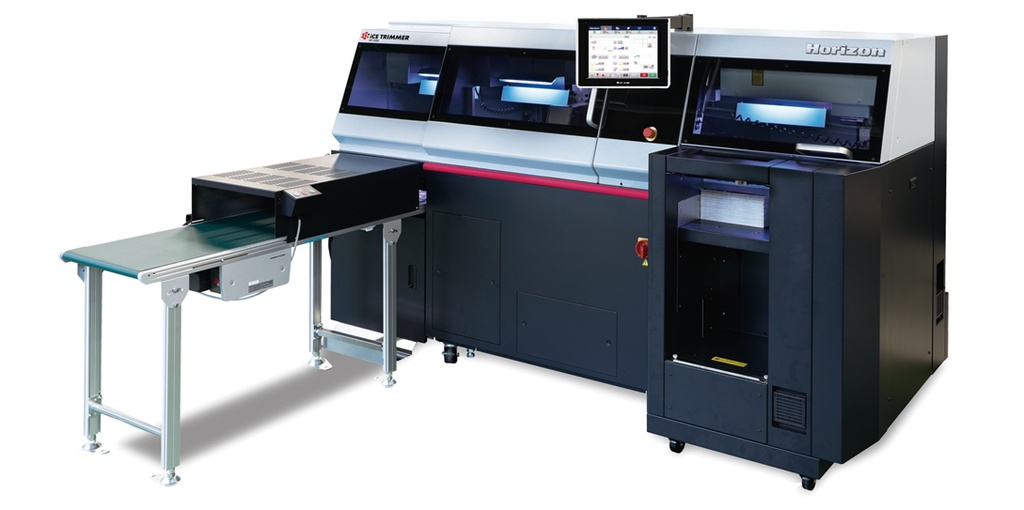

Standard Horizon HT-1000V Three-knife Trimmer

https://www.skandacor.com/web/image/product.template/18069/image_1920?unique=4d39e78

Not Available For Sale

    This combination does not exist.

    Contact Us
    3S22HT-1000V
    Three Knife Trimming

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    The Horizon HT-1000V three-knife trimmer achieves zero make-ready on book trim size and thickness changes. Well suited for short-run production, and book of one production can also be achieved through barcode driven set-up.

    • Variable three-knife trimmer
    • Untrimmed book size maximum 13.77" x 12.59" (350 x 320mm); minimum 5.83" x 4.14" (148 x 105mm)
    • Trimmed book size maximum 13.38" x 11.69" (340 x 297mm); minimum 5.71" x 4.06" (145 x 103mm)
    • Trimming widths top bottom maximum 2.36" (60mm); fore-edge maximum 4.33" (110mm)
    • Trim thickness maximum 2.55" (65mm)
    • Speed up to 1000 cycles per hour
    • Servo motor clamp and pressure
    • 220 V, 60 Hz, 3-Phase
    • 1 year warranty on mechanical parts and motors
    • Made in Japan
    HT-1000V_Skandacor.pdf
    Download
