Standard Horizon BQ-270V Perfect Binder w/Digital Caliper


    This combination does not exist.

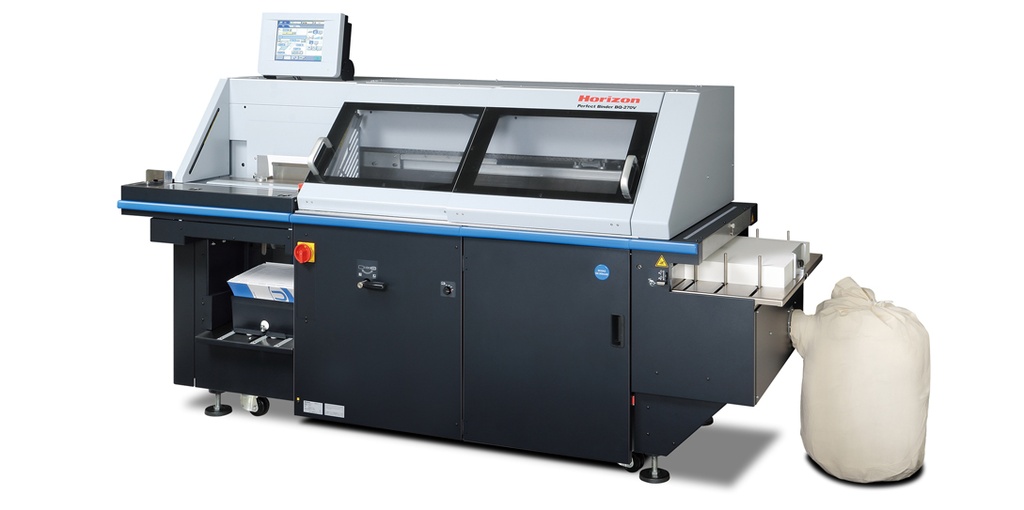

    Standard Horizon BQ-270V

    The SH BQ-270V is a single-clamp binder that offers high-speed, variable thickness, professional quality perfect-bound books. The colour touch screen is icon based—all set ups can be done instantly by simply inputting book block and cover information. The BQ-270V includes an automated, sensor-activated digital caliper system which consistently measures book block thickness and automatically transfers this data to the binder. As one book is cycling, a subsequent book of different thickness can be measured, the data will be transferred, and the binder will begin the changeover—every book can be a different thickness. Other features include a strong, rigid nipping mechanism, automatic air-suction cover feeding with in-line scoring, and a compact configuration.

    • Book Block Size: Min. 5.32"L x 4.14"W / Max. 12.59"L x 12.59”W

    • Cover Size: Min. 5.32"L x 9.06"W / Max. 12.59"L x 25.98"W

    • Speed: up to 500 Cycles/Hour

    • Book Thickness: 0.04" to 2.00"

    • Cover Weight: 22 to 80 lbs

    • Gluing Unit: Binding with Milling / Binding without Milling / Padding

    • Dimensions: 95.9"L x 35.9'W x 60.9"H

    • Electrical: 220/230/240 V / 60Hz
