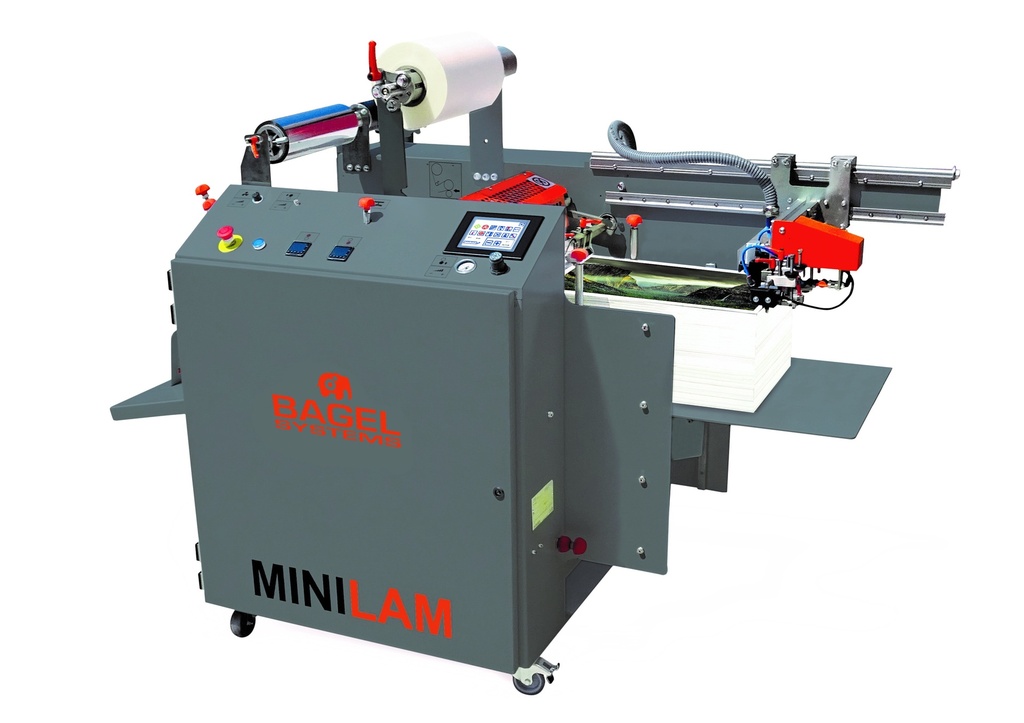

Bagel MiniLam B3 Compact Auto Single Side Laminator


    This combination does not exist.


    Minilam B3

    Purposefully designed for the most demanding and dynamic digital environments in the market. The MINILAM B3 brings superior levels of automation and performance to keep production fast and efficient. Unmatched versatility with the optional Duplex lamination module which allows double sided laminating in one pass, and the optional double film changer which holds two rolls of film at the same time. Supports SLEEKpro™ finishing metallic foils and clear and hologram finishes.

    • Min 8.25" x 11.7"
    • Max 14.9" x 27.5"
    • Up to 49 ft/min (1960 12" x 18" shts/hr)
    • 101N/mm Linear
    • 230 V, 440 Kg
    • Unit Size: 40"W x 75"L x 61"H
    • Feeder: Pneumatic, Air Suction, 4 Frontal Stops / .04 Overlap Tolerance, 15.75" Stack Height, 220lb Capacity
    • Lamination: Thermal Oil Sealed Heating Roller, Double Decurling Bar Controlled Pneumatically
    • Film Thickness: 1.0 - 1.9mil Polypropylene Films
    • Cutting: Ultra-Strong Pneumatic Micro Perforator with Automatic Position Regulation
