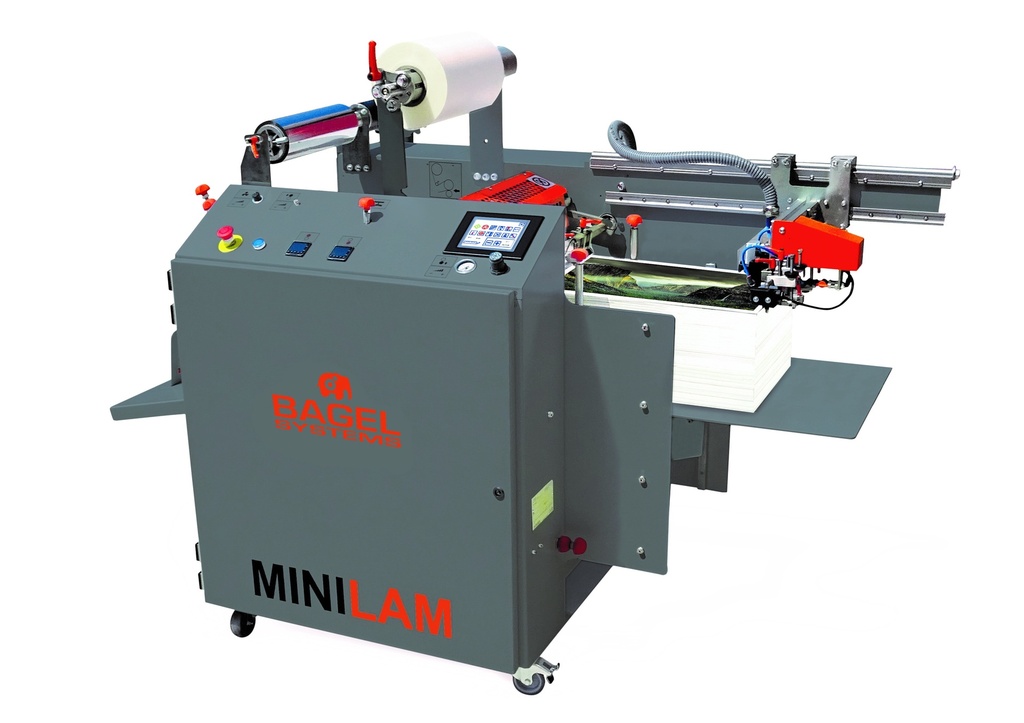

Bagel MiniLam B3 Compact Auto Duplex Laminator

This combination does not exist.

SKU: 1B033840

Category: Duplex Laminators

The MINILAM B3 is made for demanding digital environments. Capable of speeds up to 49ft/min, it efficiently handles sheets up to 14” x 27”. The Duplex unit runs at speeds up to 25 ft/min, halving traditional production time. It supports SLEEKpro™ metallic foils, as well as clear and hologram finishes.

Min 8.25" x 11.7"
Max: 14.9" x 27.5"
Paper Weight*:
Min: 120 gsm paper stock
Max: 400gsm paper stock
(*depending on application)
Speed (Simplex): Up to 49 ft/min (1960 12" x 18" shts/hr) - depending on application and film type
Speed (Duplex): Up to 25 ft/min - depending on application and film type
Feeder: Pneumatic, Air Suction, 4 Frontal Stops / .04 Overlap Tolerance, 15.75" Stack Height, 220lb Capacity
Film Thickness: 1.0 - 2.0 mil polypropylene films
Cutting: High-speed bursting
Weight: 970lbs
Unit Size: 40"W x 75"L x 61"H
Electrical: 220-240V, 1Ph

MINILam B3_Skandacor.pdf

Download

Film Type	Compatible?
OPP-based films (e.g. POLYpro)	Yes
Nylon-based films (e.g. NYpro)	No
PET-based films (e.g. PETpro)	Thin-gauge (1.0 mil - 2.0 mil ONLY)
SLEEKpro Digital Foil	Yes (with the SLEEKpro module)
