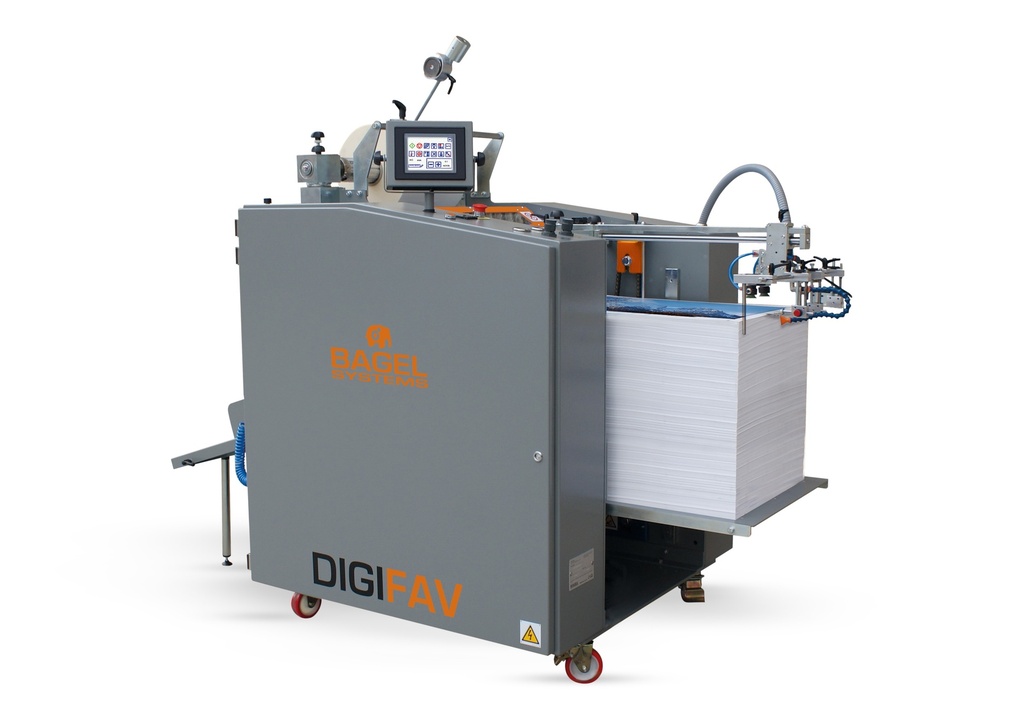

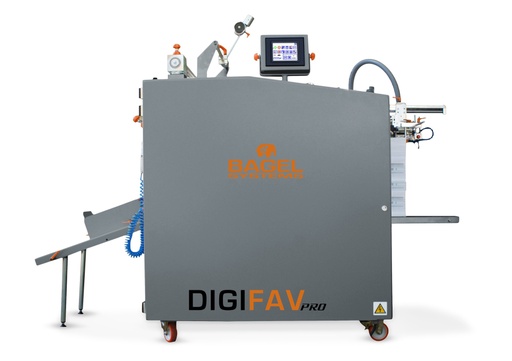

Bagel DigiFav Compact Industrial Single Side Auto Laminator

Machine Function
- Single-sided lamination
Feeding Configuration
- Automatic
Sheet Size
- 8.5" x 11" to 20" x 29"
Sheet Separation
- Bursting
Embellishments
- Digital Foil Transfer
Machine Film Thickness
- Less than 2.0 mil

This combination does not exist.

Machine Function: Single-sided lamination

Feeding Configuration: Automatic

Sheet Size: 8.5" x 11" to 20" x 29"

Sheet Separation: Bursting

Embellishments: Digital Foil Transfer

Machine Film Thickness: Less than 2.0 mil

SKU: 1B035300

Category: Single-sided Laminators

The DIGIFAV B2 professional industrial laminator is perfect for both offset and digital prints. It excels in even the most challenging printing situations and was designed with the operator in mind. It combines advanced technology with user-friendly features like one-button startup (which allows operators to start the machine with just one button), and a graphical icon-based user interface. It also supports SLEEKpro™ finishing metallic foils, as well as clear and hologram finishes.

Sheet Size: Min 8.6" x 8.6" / Max 20.8" x 29.5"
Film Thickness: 1.0 mil - 2.0 mil
Paper Weight*:
Min: 120 gsm paper stock
Max: 400gsm paper stock
(*depending on application)
Max Roll Diameter: 18"
Speed: Up to 82 ft/min (depending on application and film type)
Feeder:
- Pneumatic
- Air Suction
- Transport conveyor
- 4 Frontal Stops
- ± .04 Overlap Tolerance
- 23.6" Stack Height
- 440 lb Capacity
Cutting:
- High-speed bursting with micro-perf wheel
- Automatic position setup and regulation
- Independent Speed Control of Bursting Rollers
Electric: 220 V, 20 A, 3 Ph
Unit Size (W x L x H): 45.3" x 82.6" x 63"

Product Info

Machine Function	Single-sided lamination
Feeding Configuration	Automatic
Sheet Size	8.5" x 11" to 20" x 29"
Sheet Separation	Bursting
Embellishments	Digital Foil Transfer
Machine Film Thickness	Less than 2.0 mil

DigiFAV B2_Skandacor.pdf

Download

Film Type	Compatible?
OPP-based films (e.g. POLYpro)	Yes
Nylon-based films (e.g. NYpro)	Yes
PET-based films (e.g. PETpro)	Thin-gauge (1.0 mil - 2.0 mil ONLY)
SLEEKpro Digital Foil	Yes (with the SLEEKpro module)
