Binding is one of the most common finishing processes, and one that has traditionally caused bottlenecks. It has been and continues to be a sore point, with shops struggling to collate, punch and bind various paper stocks, add inserts and cover materials efficiently.
This list of 25 machine options compiles all of our binding options into one place for you. Regardless of which step of the process you need help with, this list features:
- Stand-alone punches
- Wire punches and closers
- Coil punches and closers
- Comb punches and closers
Punching
The first step of binding any job is punching. If punching is your biggest bottleneck, here are some options for you. The machines you see in this list are capable of punching documents for coil, wire and comb binding.

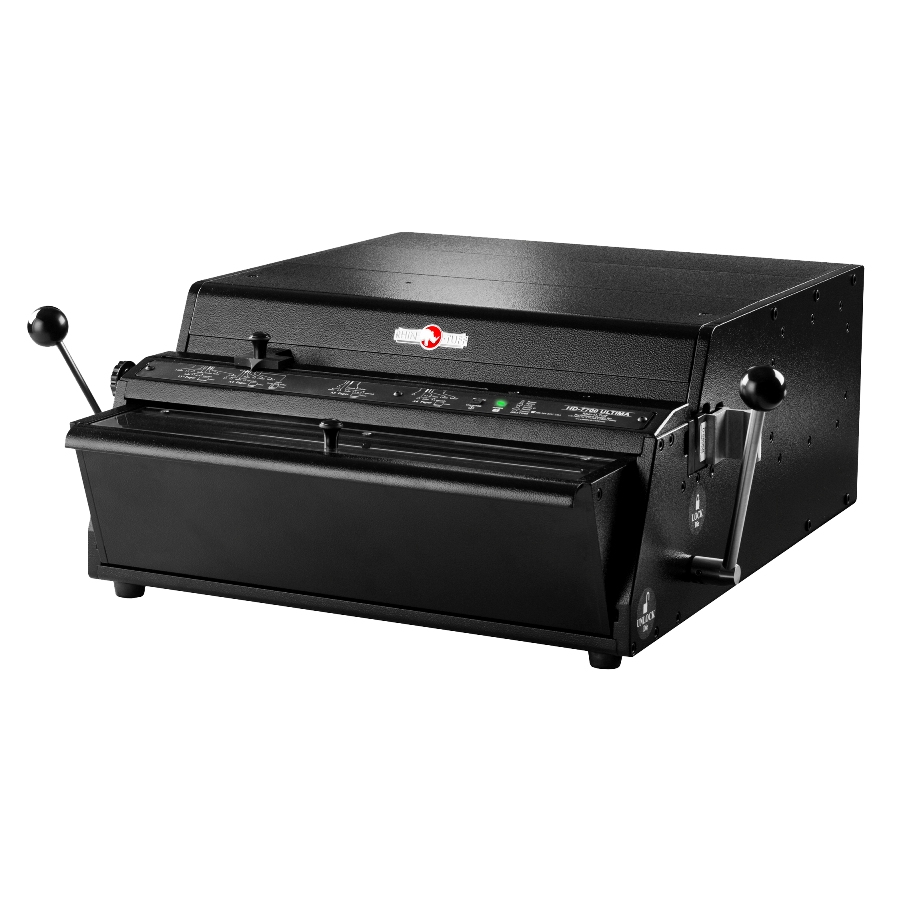

Onyx 7700 Ultima
This is Rhin-O-Tuff's heavy-duty, tabletop punch designed for high volume commercial and corporate use. It has more than 20 interchangeable die options to punch hole patterns for coil, comb and wire binding, as well as 3-hole punching. To turn it into a binding system, it's easily paired with Rhin-O-Tuff's modular finishing units — the APES Auto Paper Ejector and Stacker or the PAL Pick-A-Lift Paper Picker — for maximum efficiency with this desktop unit.

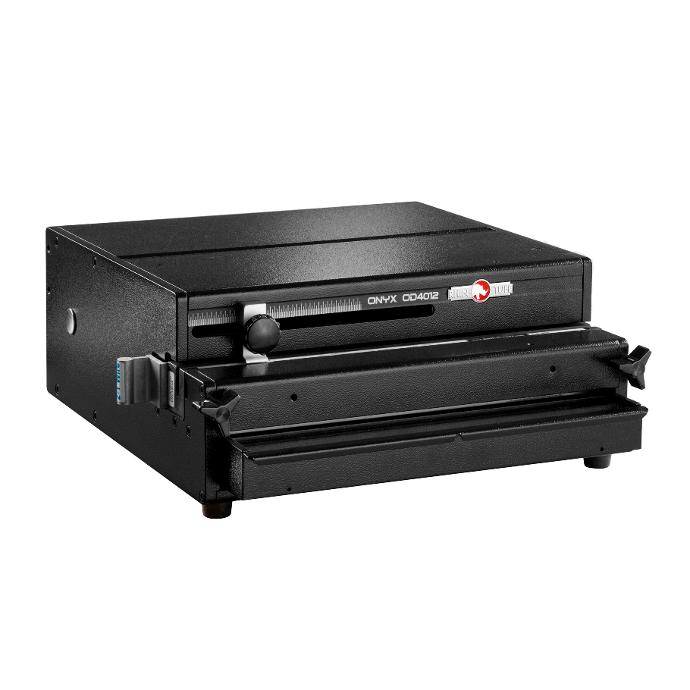

OD4012
A step down from the HD7700, is Rhin-O-Tuff's OD4012. This medium-duty open-ended tabletop punch has 12 standard interchangeable die patterns and is designed for standard-size, 11" document applications. Where the 7700 was capable of punching up to 55 sheets as wide as 14", the OD4012 punches only 30 sheets up to 11" wide.

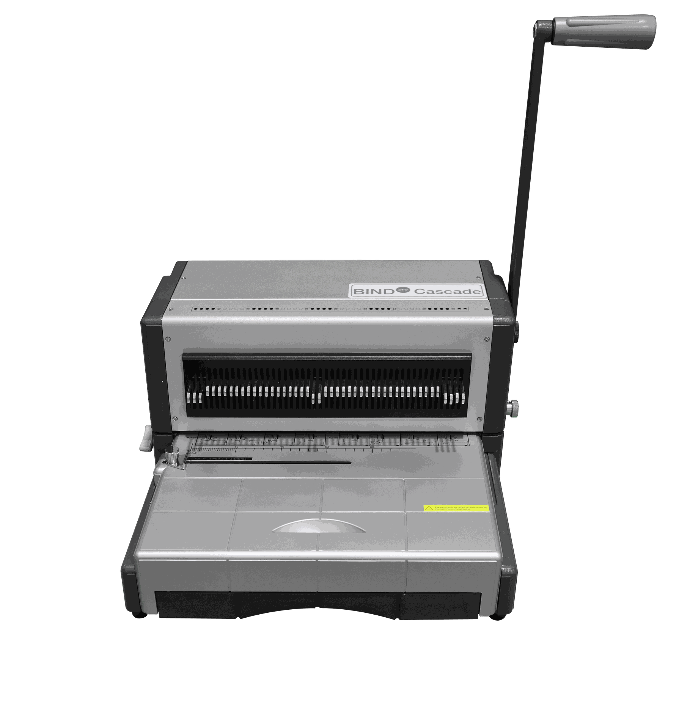

BINDpro Cascade 12MC
The BINDpro Cascade, sold exclusively by Skandacor, is a more affordable option. It can handle up to 25 sheets of 20lb paper up to 12" in width. It also has interchangeable die sets with fully disengageable pins. This machine is manual, so it's suited mainly for low volumes but it's all-round a great entry-level punch.

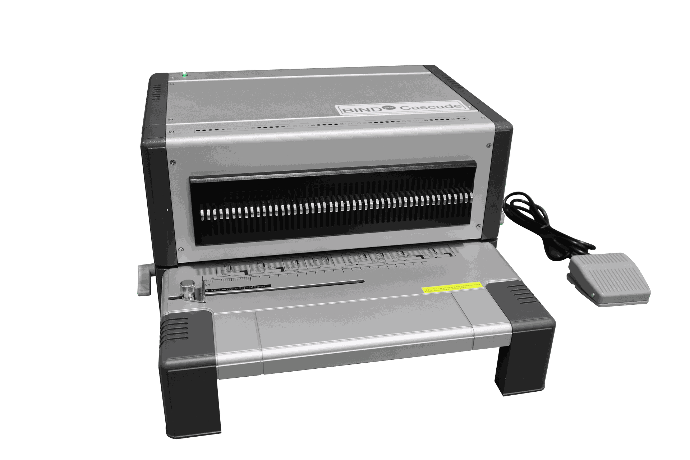

BINDpro Cascade 12EC
The electric counterpart of the BINDpro Cascade Manual can also handle up to 25 sheets of 20lb paper up to 12" in width. Like the manual, it has open ends for longer sheets and interchangeable die sets with fully disengageable pins. The main difference with this machine is that it's foot-pedal operated, rather than manually engaged via the handle. So you can process sheets a bit quicker, but it's still mainly suited for low volumes.

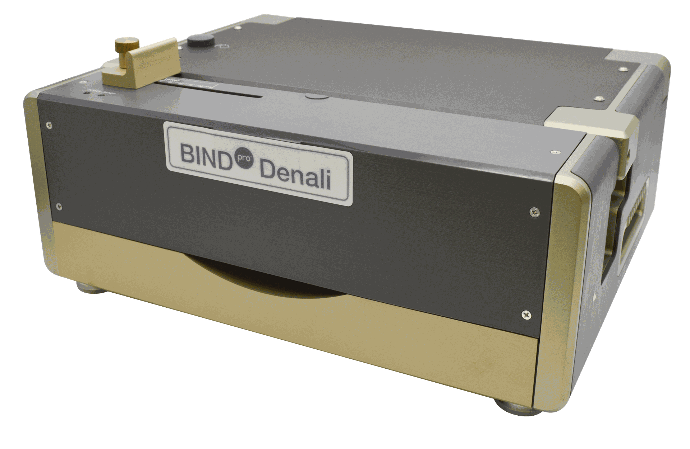

BINDpro Denali
The BINDpro Denali 12E handles more sheets (30-55 depending on the punch pattern used), and is the heavy-duty punch of Skandacor's BINDpro line. It also features interchangeable die sets with fully disengageable pins and open ends for any sheets longer than 12". The Denali is also fully electric.

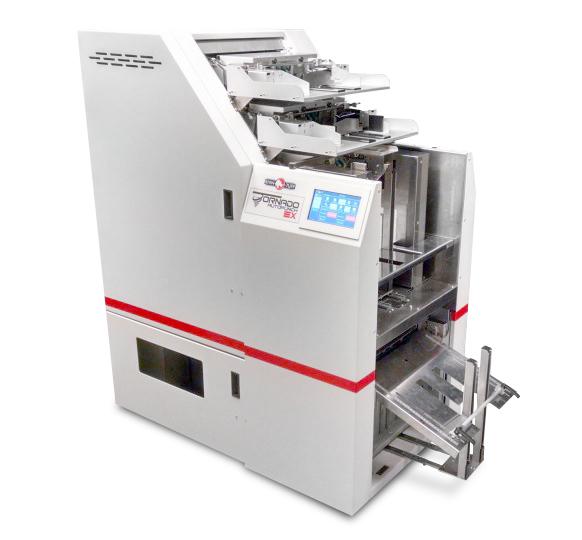

Tornado Autopunch EX
The Tornado Autopunch is the first machine of it's kind. It removes the step of manual collation so that your team is never walking around a table collating documents. This machine also punches a diverse range of media from 100lb bond sheets to PVC covers, streamlining production especially on complex jobs involving tabs, dividers, etc. It also has interchangeable dies so that you retain the capability of doing different binding styles, as suits your clients' requirements.
Wire Punches & Closers
If wire-binding is one of your biggest bottlenecks, here are a few manual and automatic options for you.

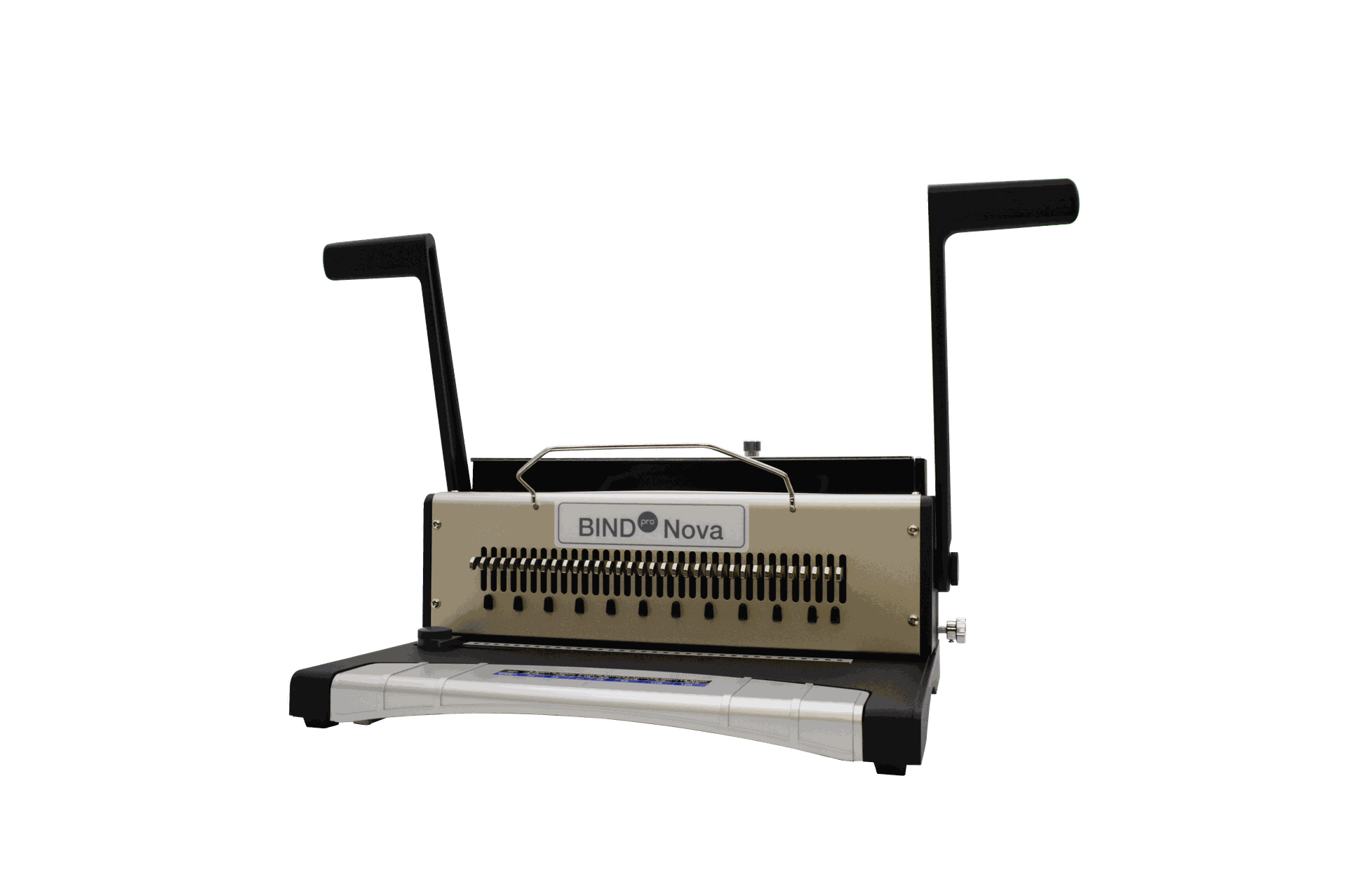

BINDpro Nova 12MW
The BINDpro Nova manual series is available exclusively from Skandacor and is available in 2:1 or 3:1 pitch configurations. This manual wire binding machine is best suited for low volume wire-binding requirements. In terms of punching capacity, it can punch up to 15 sheets, 12" in length. But can comfortably close up to 280 70-80gsm sheets.

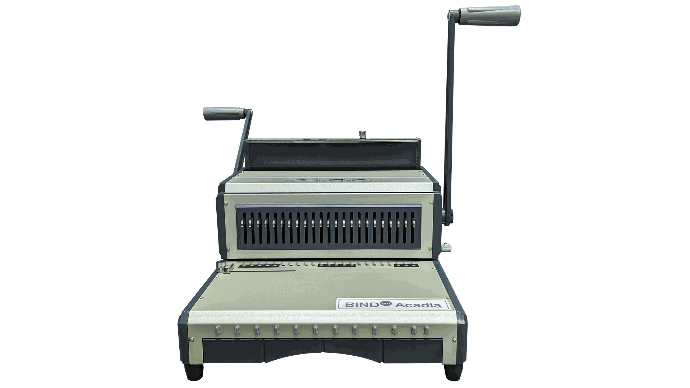

BINDpro Acadia 12MW
The BINDpro Acadia manual series is a medium volume wire punch and closer, available in 2:1 and 3:1 pitch configurations. It punches up to 25 sheets (12" in length), and can close up to 280 sheets as well. The closer also adjusts for even closure of all wire sizes.

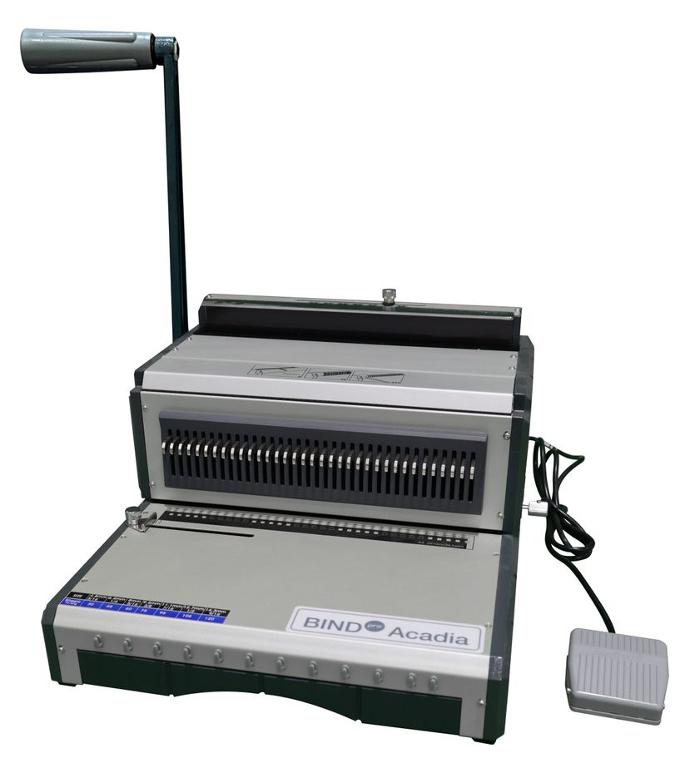

BINDpro Acadia 12EW
The BINDpro Acadia electric series is the electric counterpart to the manual series. It's also available in 2:1 and 3:1 pitch configurations and features an automatic closer. It has the same capacity as the manual version in terms of punching and closing, but thanks to the foot-pedal operated closer, works a bit quicker than the manual option.

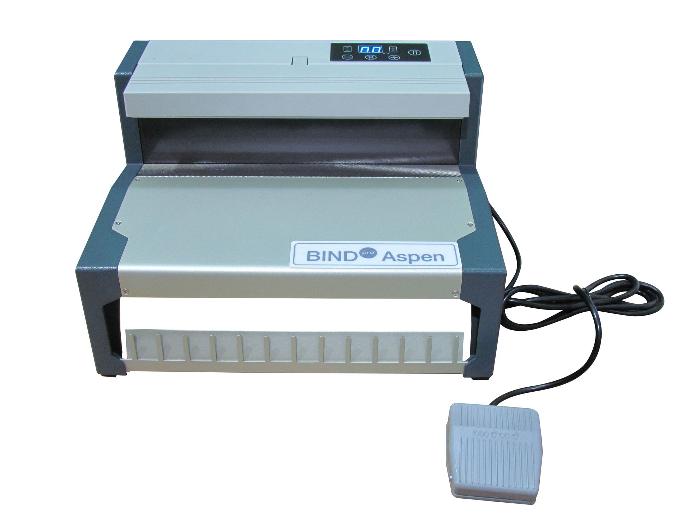

BINDpro Aspen 13E
This electric, semi-automatic wire closer has a clean modern design and is ideal for your high-volume binding needs. The Smart-Detect system automatically detects and closes wires, and the magnetic back aligns and holds the wire securely during the closing process. This machine is just a closer so an optional mount is available to allow the machine to work in conjunction with Skandacor's modular punching machines for increased productivity.

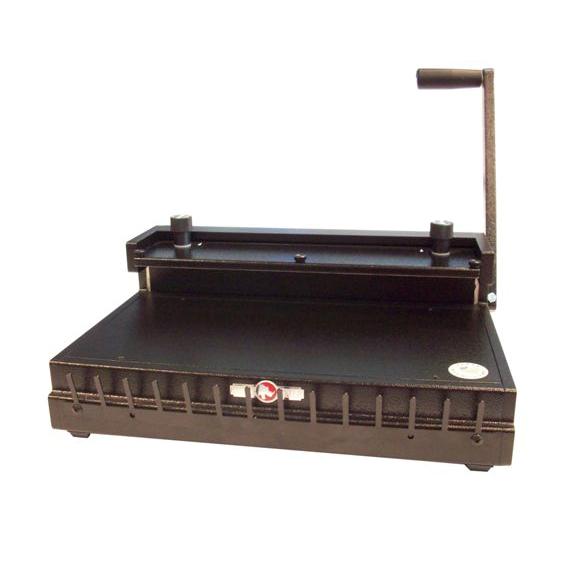

HD8000 Manual Wire Closer
The HD8000 is a durable, cost-effective wire closer with an all-metal construction. It handles wires from 3/16" to 1-1/4" diameter and a reversible binding handle allows operators to select right- or left-handed operation. This machine can either be used as a stand-alone unit or it can be mounted on compatible punches.

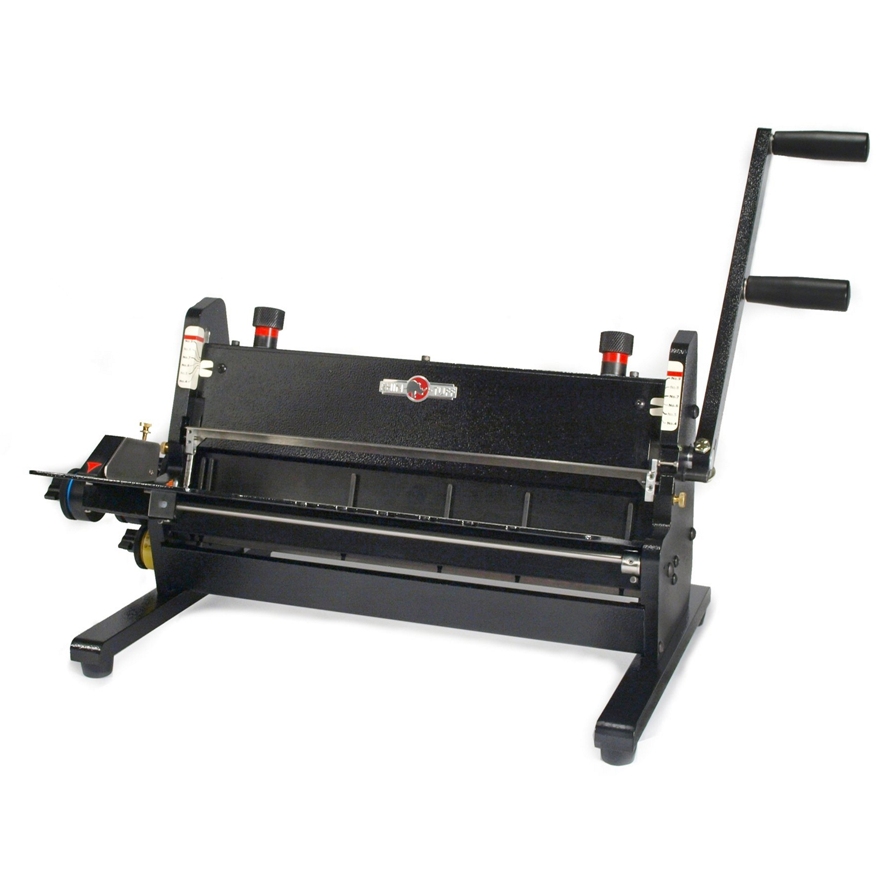

HD8370 Insert-A-Bind Wire Closer
This semi-automatic wire inserter/closer inserts and closes double-loop wire binding spines in one easy step. It handles wire from 1/4" to 9/16" in diameter and documents from 5 1/2" to 14" wide. Unlike competing machines, this one inserts and closes the wire in one easy motion, eliminating manual hand insertion of documents onto the wire loops before closing. This unit can also be operated by itself, or in conjunction with any vertical Rhin-O-Tuff punch.
Quantum Bind 360C
The Quantum Bind is a double-loop wire binding machine, capable of working at speeds up to 1000 books/hour. It accepts 2:1 and 3:1 pitch wires, feeds, cuts, binds, and closes – all in one machine. A color touchscreen and its unique ability to bind varied book sizes without needing the operator to change the mold make it an outstanding machine.
Coil Punches & Inserters
If you're still manually inserting and crimping coil, these machines will drastically speed up your process.

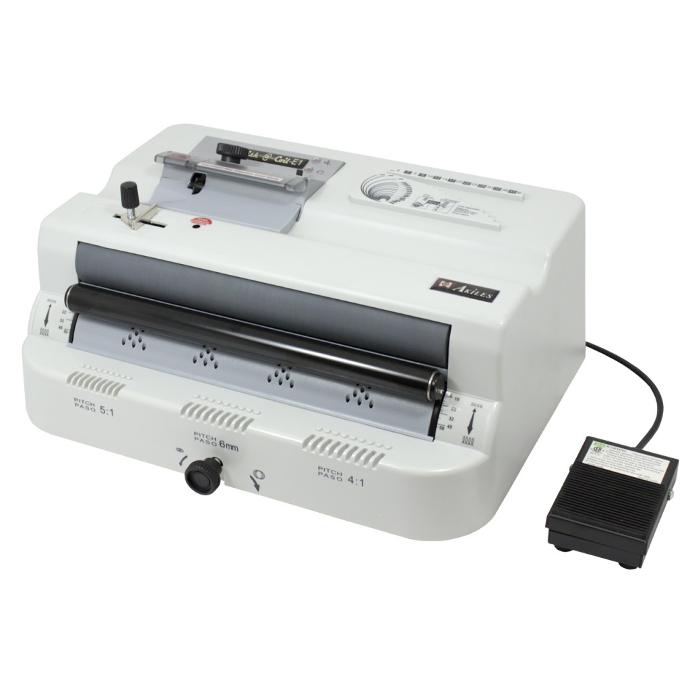

E1 Finish @ Coil
This easy-to-use automatic coil finisher and crimper requires minimum operator effort. It features adjustable, full-size rollers, making coil inserting extremely fast and easy, even on extra-large diameter sizes. The built-in foot-pedal operated coil crimper provides consistent and perfect crimps on coil sizes up to 50mm.

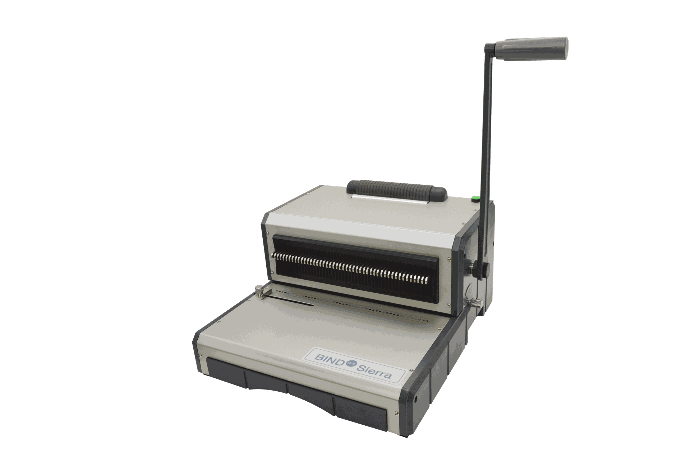

BINDpro Sierra 12MC (4:1 Pitch)
The BINDpro Sierra 12MC handles medium-volume coil binding requirements. This reliable unit includes a punch and electric inserter. The dies deliver a clean, precise punch, even when working with hard-to-punch materials like PVC, and the electric inserter helps speed up the coiling process.
BINDpro Sierra 12EC (4:1 Pitch)
The electric version of the Sierra 12MC also handles medium volume coil binding requirements. The main difference is that both the punch and the inserter are electric in this machine.

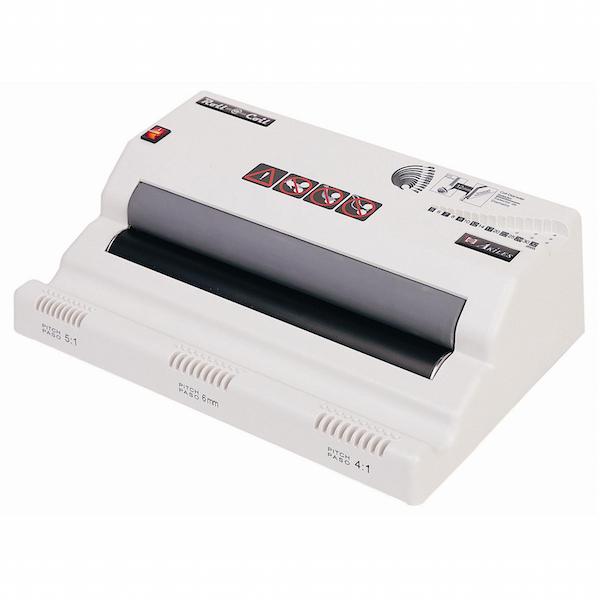

Roll @ Coil
The Roll @ Coil features an electric roller inserter, operated by foot pedal control allowing the operator to use both hands to hold the document as well as full control of the rotating roller. A built-in diameter selector identifies the best coil diameter to be used for the thickness of the document, while a pitch identifier can be used to confirm that the coil pitch matches that of the punched document.

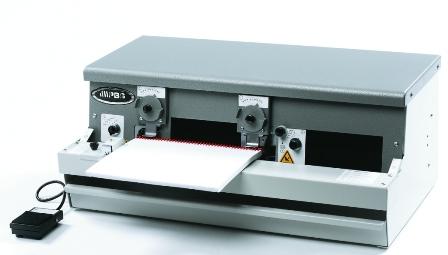

Total Cut & Bend Double-Sided Coil Crimper
This desktop machine is designed to cut and crimp the full range of coil diameters from 6mm to 50mm with the same crimping heads. It uses simple dial adjustments for set up and size changeovers, without the need of tools. It's easily integrated with most coil insertion equipment.
Koilmatic Electric Coil Inserter/Crimper
This electric coil inserter/crimper is an automatic table-top coil inserter that's easy-to-use when inserting coil into pre-punched book blocks. It features some advanced functions including a dynamic LCD screen that guides the operator through the machine's setup and operation. The machine consistently crimps both ends of the coil, speeding up the production.
Comb Punches & Inserters
Some people argue that comb binding is dying. But it's still a great option for reports and other documents where you may need to add or remove pages later, etc.

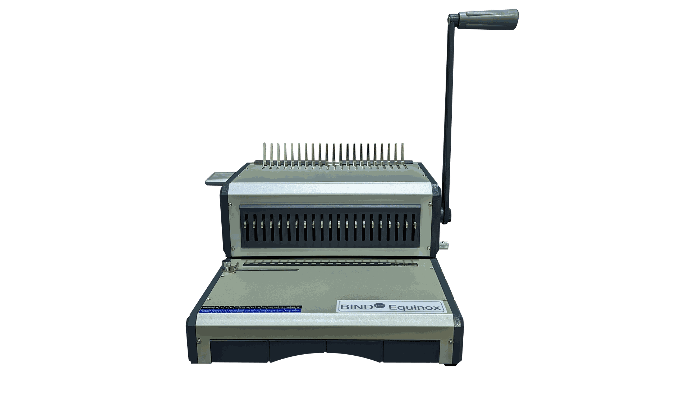

BINDpro Equinox 12MA
The Equinox is an electric comb binding machine ideal for low and medium volume comb binding requirements. This reliable unit includes an electric punch and manual comb opener.
Conclusion
So, what's the machine that will make the most impact in your shop and your binding process?
Let's make your binding process more efficient!
