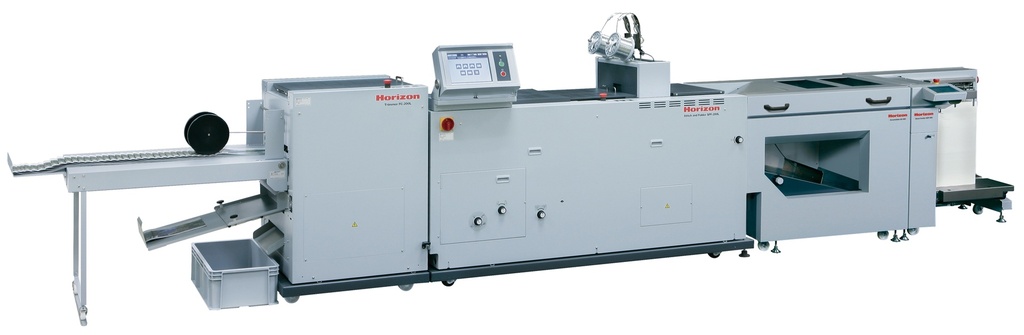

The SPF-200L booklet making system provides a wide variety of booklet formats including A4 landscape. This expanded capability provides a wider range of formats, to support the demanding market needs. The large 10.4" color touchscreen features an intuitive, icon-based display for easy operation and quick troubleshooting, while the system's flexible configurations mean that it can be connected to either the VAC-1000 for conventional offset print production or the HOF-400 offline feeder to handle digital output.
Sheet Size: Max. 14” x 2” / Min. 4.725” x 7.090”
Sheet Weight Range: 64 to 157 gsm
Fold Thickness: Max. 2 mm
Stitch Distance: 73 to 290 mm / 2.875” x 11.400” Adjustable
Corner Stitching Position: 3 to 15 mm / 0.120" to 0.590" Adjustable
Production Speed: Max. 4,000 booklets per hour
Voltage/Frequency: Single Phase 240V
Dimensions: W73.1” x D31.9” x 49.3”
