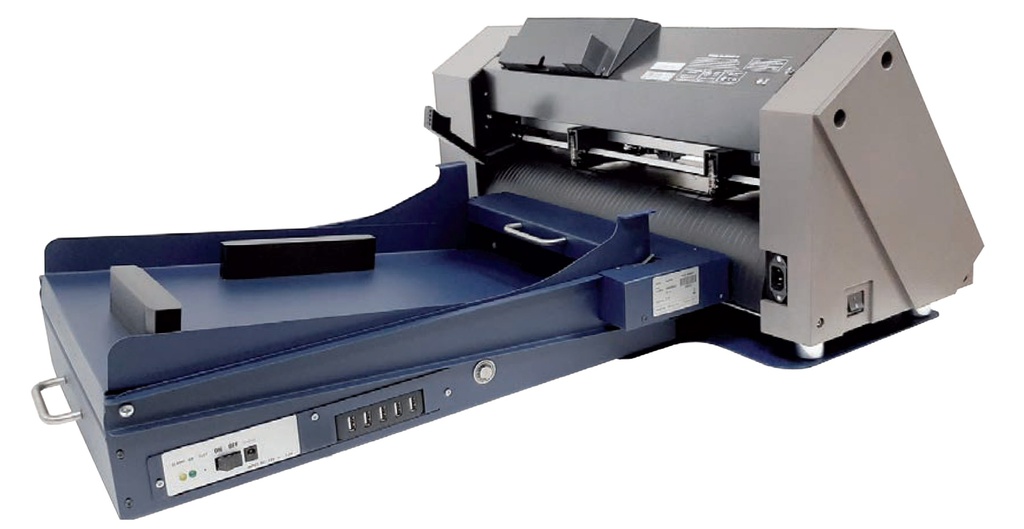

The OMNICUT 350 is an automatic sheet feeding and cutting system designed to automatically load and cut sheets without operator intervention. Equipped with a Graphtec CE7000-40 Plotter, cuts can be made on adhesive sheets, silkscreen prints, shop material prints, and digital prints on cardboard. A newly designed ramp-style loading tray and wheel system, allows the sheets to be automatically loaded onto the plotter without interruption, cut, then dispensed into the catch tray, all with ease.
This plotter is equipped with an integrated sensor reader to assist in reading the marks after each sheet is loaded, all within a fraction of a second. This is done while working in tandem with the cutting management software resulting in a cut precision of 0.011" (0.3mm). The cutting parameters can be adjusted using the cutting management software included, giving the user a simple and smart way to operate the unit.
