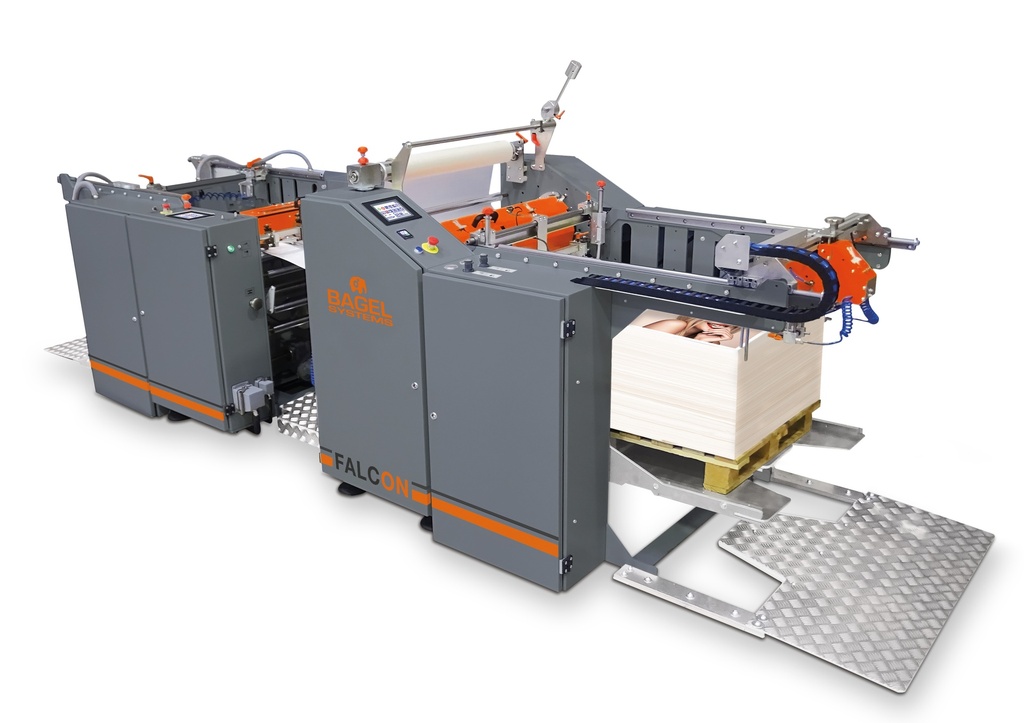

Bagel Falcon B1 Industrial Single Side Auto Laminator

Machine Function
- Single-sided lamination
Feeding Configuration
- Automatic
Sheet Size
- 8.5" x 11" to 29.5" x 41"
Sheet Separation
- Bursting
Embellishments
- Digital Foil Transfer
Machine Film Thickness
- Less than 2.0 mil

This combination does not exist.

Machine Function: Single-sided lamination

Feeding Configuration: Automatic

Sheet Size: 8.5" x 11" to 29.5" x 41"

Sheet Separation: Bursting

Embellishments: Digital Foil Transfer

Machine Film Thickness: Less than 2.0 mil

SKU: 1B037500

Category: Single-sided Laminators

A monumental leap and the future in lamination, the FALCON B1 high-performance industrial laminator brings to the stage radical automation that is still completely logical. Epic performance in everything that defines an industrial laminator today: productivity, automation, robustness, accuracy, quality laminating and digital adaptation. The ability to load and unload by pallet minimizes production downtime and paper waste. No matter what the job, the FALCON B1 is up to the task and producing results that showcase on a stage of their own.

Sheet Size: Min 11.8" x 11.8" / Max 29.5" x 41.3"
Paper Weight*:
Min: 120 gsm paper stock
Max: 400gsm paper stock
(*depending on application)
Speed: Up to 115 ft/min (4,140 20"x28" sheets/hr)
Feeder:
- Pneumatic
- Air Suction
- ± .04 Overlap Tolerance
- 31.5" Stack Height
- 1102 lb Capacity
Lamination:
- Thermal Oil Sealed Heating Roller
- Double Decurling Bar Controlled Mechanically
Cutting:
- High-speed bursting with micro-perf wheel
- Independent Speed Control of Bursting Rollers
Electrical: 220 - 240 V, 3 Ph
Unit Size (W x L x H): 39.5" x 70" x 61"

Product Info

Machine Function	Single-sided lamination
Feeding Configuration	Automatic
Sheet Size	8.5" x 11" to 29.5" x 41"
Sheet Separation	Bursting
Embellishments	Digital Foil Transfer
Machine Film Thickness	Less than 2.0 mil

FALCON B1_Skandacor.pdf

Download

Film Type	Compatible?
OPP-based films (e.g. POLYpro)	Yes
Nylon-based films (e.g. NYpro)	Yes
PET-based films (e.g. PETpro)	Thin-gauge (1.0 mil - 2.0 mil ONLY)
SLEEKpro Digital Foil	Yes (with the SLEEKpro module)
