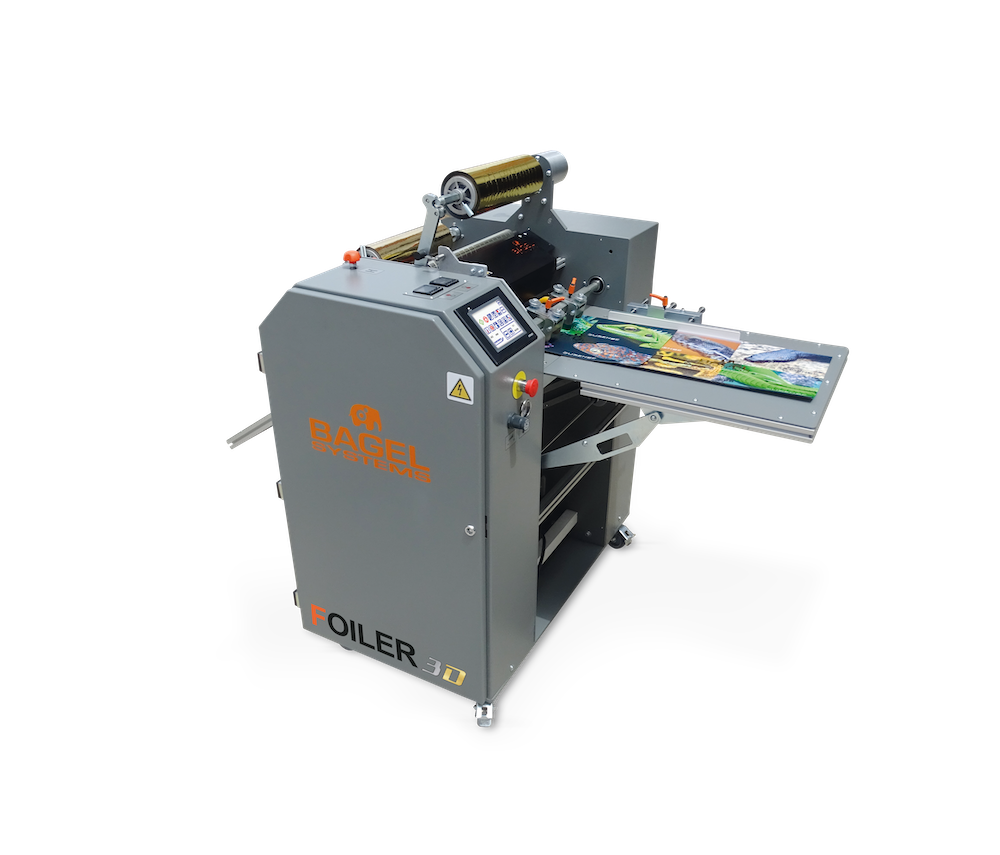

Foiler 3D Semi-Auto

Feeding Configuration
- Semi-automatic
Sheet Size
- 8.5" x 11" to 14" x 27.5"
Embellishments
- Digital Foil Transfer

This combination does not exist.

Feeding Configuration: Semi-automatic

Sheet Size: 8.5" x 11" to 14" x 27.5"

Embellishments: Digital Foil Transfer

SKU: 1B031380DSA

Category: SLEEKpro

The FOILER 3D specialty finishing system provides an unparalleled finish for medium and large productions. This is possible thanks to its heating and pressure system, both oil-heated, very stable, very robust, and equipped with a greater level of precision. With all the re-engineering carried out, its performance and reliability are enormous. It includes higher precision temperature sensors, a special sensory pressure system, and offers a semi-automatic feeder.

Speed: 33ft/min (depending on foil, external conditions, paper type, paper thickness and format)
Format and paper weight: Min: 8.6" x 8.6", Max: 15" x 27.5", 130-350gsm
Varnish thickness: 0 - 80µm
Foiling unit: Automatic, self-regulated accuracy pressure system. Up to 101 Newtons/liner mm pressure
Delivery unit: 1 fan battery for cooling, 1 fan battery for the exit
Dimensions (LxWxH): 65" x 42" x 57"
Weight: 750lbs
Electrical: 230V, single phase
