98" SteelTrak Vertical Substrate Cutter


    This combination does not exist.


    SteelTrak Series

    The SteelTrak 98” is a strong, reliable vertical cutter capable of handling 4’ x 8’ boards. It has a vertical cutting length of up to 98” and is accurate to within 1mm. Constructed of extruded aluminum, the 98” SteelTrak is strong, versatile, safe and easy-to-use.

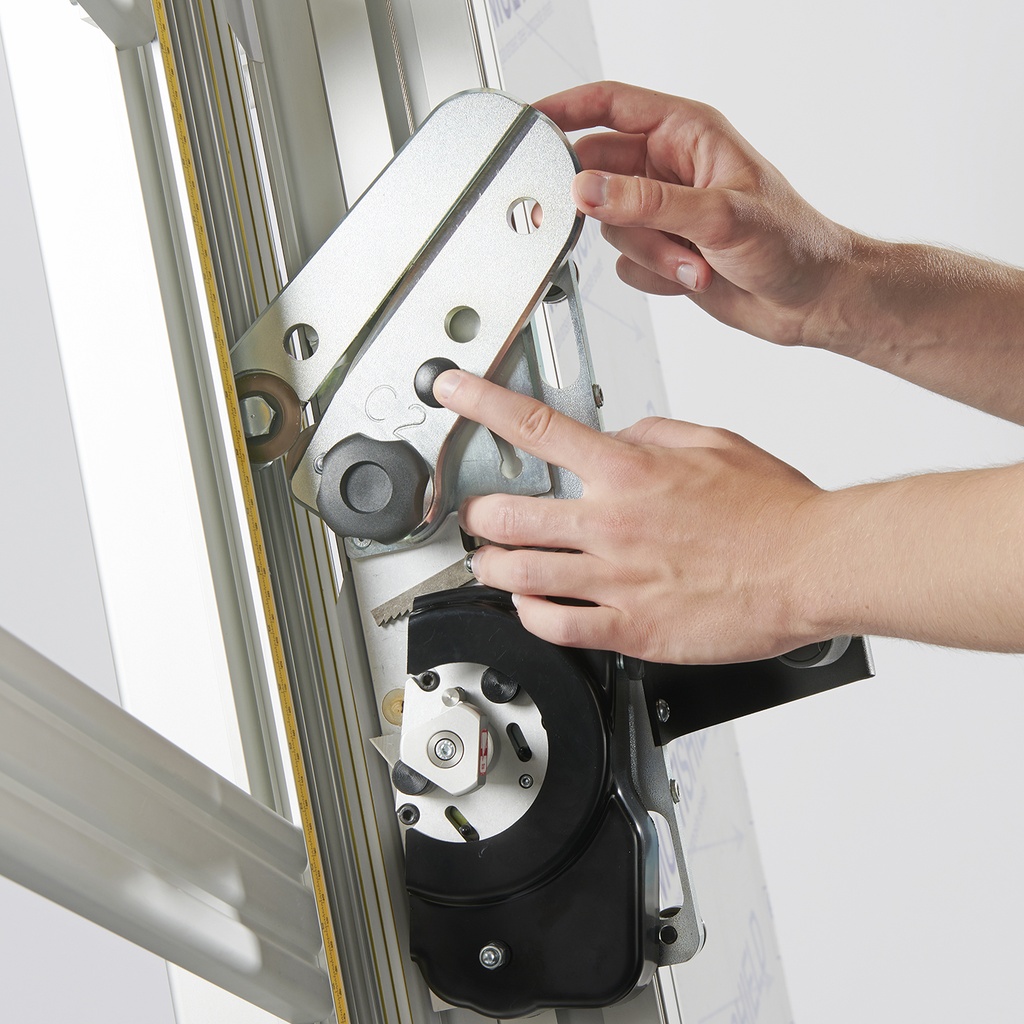

    The cutting head of the SteelTrak is an easily adjustable three-in-one cutting tool. Three cutting tools, mounted to the cutting head, are ready for instant action – simply turn the wheel to select the utility blade, scoring blade, or composite twin-wheel cutting head and lock it into place. An optional v-groove cutting tool makes folding of aluminum composite, corrugated plastic and PVC foam board into 90° possible.

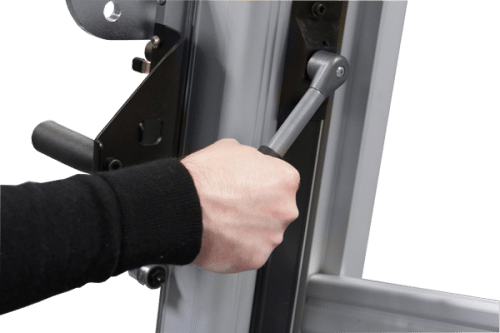

    The 98” model features a pull bar system for easy operation when cutting 8’ media. It includes a counterbalance, the same as the smaller models, so that the cutting head can be suspended at any height rather than being dropped to the bottom. The counterbalance eliminates the load from the cutting, and because operators aren’t lifting the full weight of the head, they can concentrate solely on cutting material - saving time and increasing productivity. The 98” SteelTrak vertical cutter comes with a wall mount kit and telescopic legs for adjusting the height to suit the operator’s preference. An optional free-standing kit is available. Other features included with this vertical substrate cutter are a full-length, extra-grip clamping system to secure materials, a transparent cutline cursor and quick-set production stops.

    Designed specifically for the tougher, thicker rigid and semi-rigid materials use in today’s sign making industry, the SteelTrak is the most accurate and easy-to-use vertical cutter available. It casts no debris during the cutting process and can be positioned alongside your printing machines. Virtually maintenance free, and built to last, this vertical cutter is the option for you.

    • Cut up to 98" (2489mm) length
    • Perfect for Cutting:

      Rigid materials

      Aluminum composite panel e.g Dibond ≤ 4mm

      Steel composite panel e.g Multishield ≤ 3mm (1/8″)

      V-grooves Dibond ≤ 3mm (1/8″) with optional SteelTrak v-groover

      MDF ≤ 3mm (1/8″)

      Cast acrylic / Plexiglas (scoring only) ≤ 3mm (1/8″)

      Glass ≤ 6mm (1/4″) with optional glass cutting kit

      Semi-rigid materials

      PVC foamboard ≤ 13mm (1/2″)

      Corrugated/fluted plastic ≤ 13mm (1/2″)

      Corrugated cardboard ≤ 13mm (1/2″)

      Foam centered board ≤ 13mm (1/2″)

      Mountboard ≤ 6mm (1/4″)
      Aluminum sheet ≤ 1mm with optional cutting head

    • Accurate to within 1mm
    • One cutting head includes three tools: 100 medium-duty utility blades, acrylic scoring blade, and composite twin-wheel cutting tool
    • Wall-mount kit included
    • Options: v-groove cutting tool, aluminum twin-wheel cutting tool, free-standing kit, 27.5" squaring arm extension, glass cutting kit
    • 121" x 87.5" x 36"- 49" size (3073 x 2222 x 914 - 1244mm)
    • 243 lbs weight (110.2kg)
    • Guaranteed for 5 Years
    • Made in UK
