82" SteelTrak Vertical Substrate Cutter


    This combination does not exist.


    SteelTrak Series

    Designed specifically for the tougher, thicker rigid and semi-rigid materials used in today’s sign making industry, the SteelTrak is the most accurate and easy-to-use vertical cutter available. The 82” SteelTrak vertical cutter can handle a variety of substrates up to 82” long and is accurate to within 1mm.

    The 82” SteelTrak has an easily adjustable three-in-one cutting head. Three cutting tools, mounted to the cutting head, are ready for instant action – simply turn the wheel to select the utility blade, scoring blade, or composite twin-wheel cutting head and lock it into place. An optional v-groove cutting tool makes folding of aluminum composite, corrugated plastic and PVC foam board into 90° possible. If includes a counterbalance, fitted to the rear spine of the SteelTrak, that allows users to lock the head in any position rather than drop it to the bottom of the cutter. It also eliminates the load from the cutting head, and because users aren’t lifting the full weight of the head, they can concentrate solely on cutting the material. This saves time and increases productivity. The cutter comes with a wall-mount kit and telescopic legs for adjusting the height to suit the operator’s preference. An optional free-standing kit is available. Other features included with the SteelTrak vertical cutter are a full-length, extra-grip clamping system for securing materials, a transparent cutline cursor and quick-set production stops.

    Constructed of extruded aluminum, the 82” SteelTrak vertical substrate cutter is strong, versatile, safe and easy-to-use. Virtually maintenance free, and built to last, this vertical cutter can handle the requirements of any sign shop.

    • Cut up to 82" (2083mm) length
    • Perfect for Cutting:

      Rigid materials

      Aluminum composite panel e.g Dibond ≤ 4mm

      Steel composite panel e.g Multishield ≤ 3mm (1/8″)

      V-grooves Dibond ≤ 3mm (1/8″) with optional SteelTrak v-groover

      MDF ≤ 3mm (1/8″)

      Cast acrylic / Plexiglas (scoring only) ≤ 3mm (1/8″)

      Glass ≤ 6mm (1/4″) with optional glass cutting kit

      Semi-rigid materials

      PVC foamboard ≤ 13mm (1/2″)

      Corrugated/fluted plastic ≤ 13mm (1/2″)

      Corrugated cardboard ≤ 13mm (1/2″)

      Foam centered board ≤ 13mm (1/2″)

      Mountboard ≤ 6mm (1/4″)

      Aluminum sheet ≤ 1mm with optional cutting head

    • Accurate to within 1mm
    • One cutting head includes three tools: 100 medium-duty utility blades, acrylic scoring blade, and composite twin-wheel cutting tool
    • Wall-mount kit included

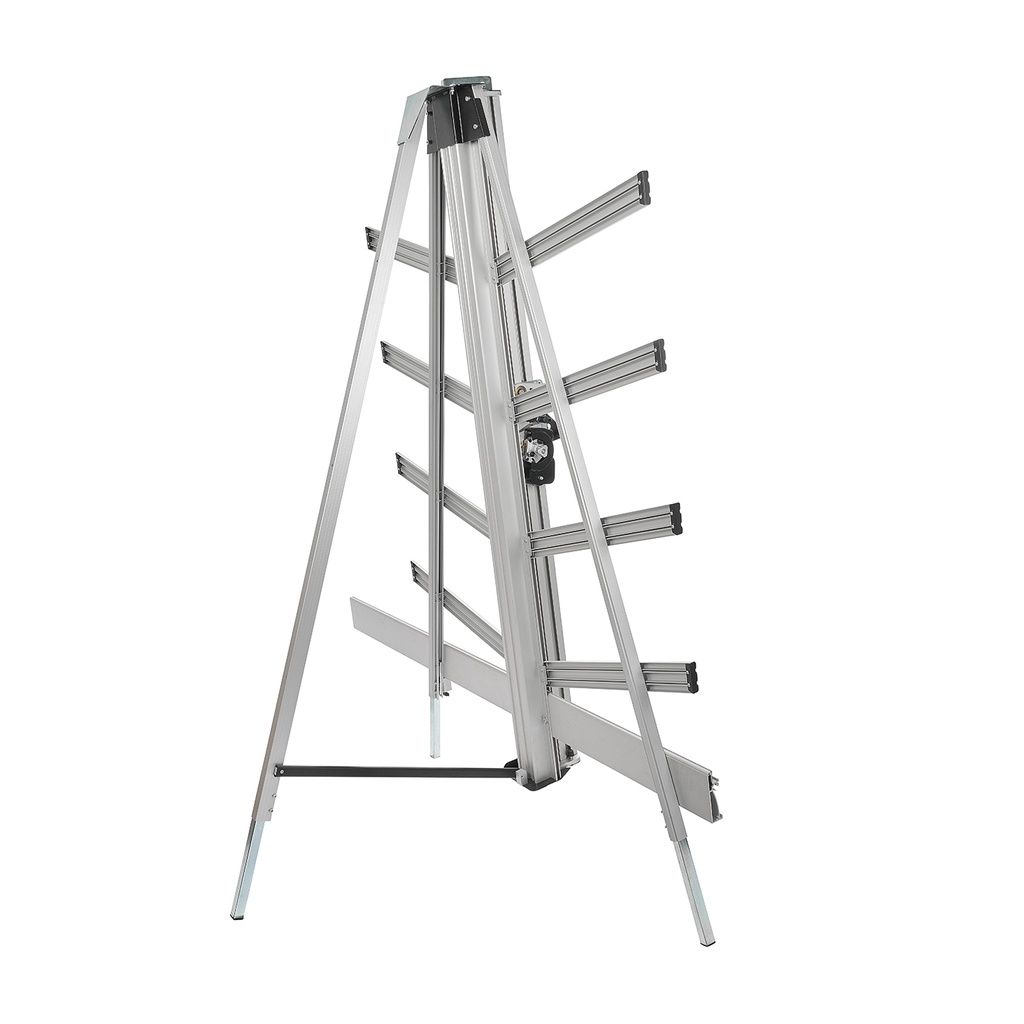

    • Options: v-groove cutting tool, aluminum twin-wheel cutting tool, free-standing kit, 27.5" squaring arm extension, glass cutting kit
    • 110" x 84.75" x 12"-16" size (2794 x 2153 x 305 - 406mm)
    • 207 lbs weight (93.9kg)
    • Guaranteed for 5 Years
    • Made in UK
